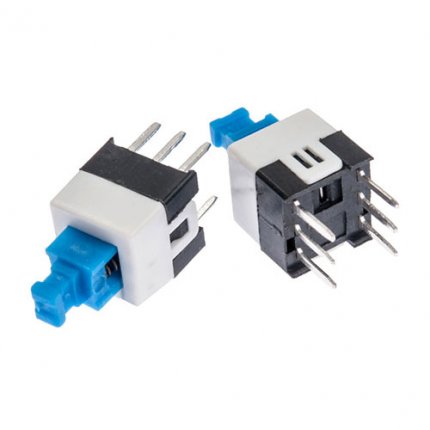

Switch Button Self Locking

Name: Switch Button Self Locking
SKU: 11009
Availability: InStock

₹27.12

Product Name – Self-locking Tactile Switch
Pin – 6 Pin configuration design
Action Type – Latching DPDT
Rating – 0.1A DC30V
Insulation Resistance – ≥100MΩ
Dielectric Strength – AC250V 50Hz /min
Contact Resistance – ≤50MΩ
Operating Temperature – -25℃~ + 65℃
Lifetime – 100000 Cycles
Operating Force – 160 ± 80gf
